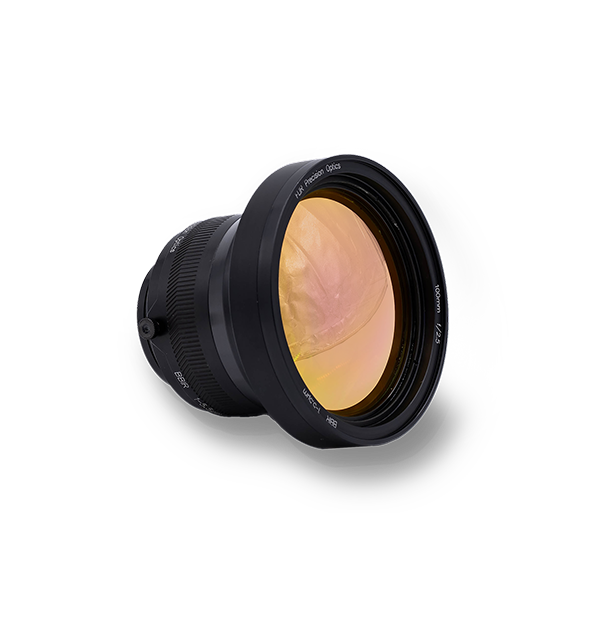

100 mm f/2.5 Broadband FPO manual lens
Go to Product SupportBroadband lens for FLIR R&D/Science cameras, including A67xx MWIR, A85xx MWIR, X68xx MWIR, X69xx MWIR, and X85xx MWIR.
- Products
- Research & Development
- R&D Lenses
- 100 mm f/2.5 Broadband FPO manual lens
Added to cart
Model:
Specifications
Communication & Data Storage
- Interface
- 4-tab FPO manual focus bayonet
Environmental & Certifications
- Operating Temperature Range
- -20°C to 50°C (-4° to 122°F)
- Storage Temperature Range
- -20°C to 60°C (-4°F to 140°F)
General
- Average Transmission
- 82.73%
- Weight
- 1.07 kg (2.35 lbs)
Imaging & Optical
- Diameter
- 108 mm (4.26 in)
- F_number
- f/2.5
- Focal Length
- 100 mm
- Focus
- Manual
- Focus Range
- 3 m to infinity
- Length
- 76 mm - 82 mm (2.99 in - 3.22 in)
Imaging & Optical
- Distortion
- <1%
- Hyperfocal Distance
- 185 m/250 m (at 4.2 µm/3 µm)
- Spectral Band
- 1.0 - 5.5 µm
Other
- Filter_CameraType
- Fixed Entry-Level||Fixed Advanced
Export Restrictions
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
