5 or 8 Megapixel Visible Security Camera

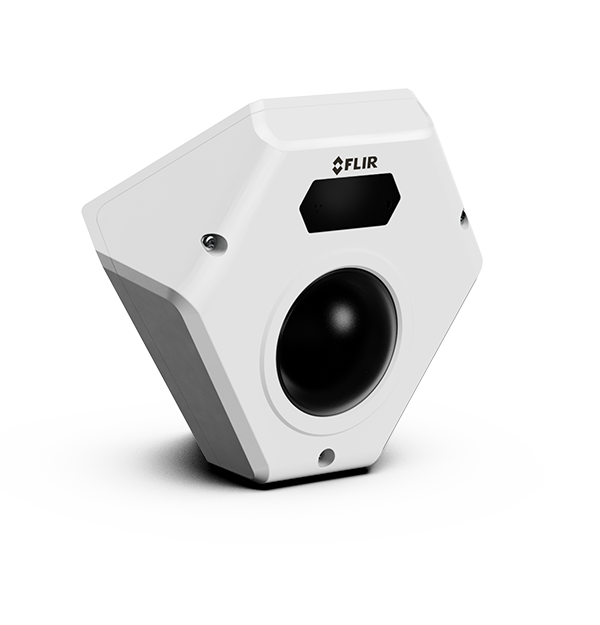

Ariel™ Corner Camera

Model: CC-3405-01-I 5 MP Corner Camera Go to Product Support

The Ariel 5 MP Corner Camera features a unique corner-shape form factor and extended FOV lens that provides ceiling-to-floor and wall-to-wall coverage. Due to its corner mounting, ligature-free housing and discrete infrared illumination, this camera offers built-in Basic Video Analytics and is an ideal solution for any deployment that requires full coverage from a single camera, including correctional institutions, healthcare facilities, building lobbies and elevators.

  • Durable housing

    A rugged, no-ligature housing resists tampering, yet its sleek design makes it suitable for both industrial and commercial locations.

  • Extended field of view

    The camera's specialty lens provides ceiling-to-floor and wall-to-wall coverage with no blind spots.

  • Covert low light color and IR performance

    The camera delivers extreme color sensitivity and IR-illumination that is imperceptible to the human eye.

Specifications
General
AES
1/1 to 1/32,000
BLC
Yes, ON/OFF in linear mode
Compression
Enhanced H.265 main profile + Enhanced H.264 main/high/baseline Profile + MJPEG
Day/Night Mode
Yes
Dimensions
150 × 82 × 52 mm (59 × 32.3 × 20.5 in)
Enclosure
Metal IK10 vandal resistant/IP66
Firmware Upgrade
Flash memory for upgrade of camera firmware over the network
Input Voltage
PoE IEEE802.3af (class 0), DC 12 V, 24 V AC
Power Connection
RJ45, DC, AC
Power Consumption
12.95 W
Privacy Zones
Yes
Scanning Mode
Progressive
Shutter WDR
130 dB
Tamper Detection
Yes
Unit Weight
Net: 1.01 kg (2.22 lb) Gross: 1.35 kg (2.97 lb)
Warranty
According to FLIR RMA Policy and Process Notice document
Compliance & Certifications
International
CE marked, EN 61000-6-3, EN 62368-1, EN 50130-4, CB 62368-1, LVD (CoC), RoHS, RCM, WEEE, ISTA-3A
MTBF [hrs]
526,279 (30°C); 149,537 (60°C)
ONVIF Compliance
Profiles S, G, M, and T
USA
FCC Part 15 (subpart B, class A, ICES-003)
Cyber Security
Security
Password protection IP address filtering TLS/HTTPS IEEE 802.1X network access control Digest authentication Password policy: Protect from multiple failure login
Environmental
Humidity
10%–90% (non-condensing)
Operating Temperature
-30°C to 55°C (-22°F to 131°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Environmental
Shock & Vibration
IEC 60068-2-64: 2008
Measurement & Analysis
Bump/Vibration
IEC 60068-2-27: 2008
Other
Max Performance
HDR: 2592 × 1944 + 800 × 600, @30 fps 2048 × 1536 + 800 × 600, @30 fps
System Integration
Angle of Illumination
Full 90°
Audio
Bidriectional: line in and microphone built-in, G.711 / G.726 / AAC / LPCM, line out
Bi-directional Audio
Line in and Microphone built in, G.711/G.726/AAC/LPCM, Line out
Distance
15 m (49.2 ft)
Ethernet
10/100 mbps
Input
2 dry alarm contacts, 5 V with 10 KΩ pull up, 100 mA @ room temperature
LED Type
High-efficiency SMD
Network Protocol
IPV4/6, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, SNMP, QoS, TLS, SMTP, FTP, DDNS, PPPoE, RTCP
Output
1 relay contact max. 350 V DC/AC, 130 mA
Peak Emission Wavelength [nm]
940 nm
Remote Configuration
Via web browser or supported VMS
Supported Web Browser
Firefox, Chrome, Edge, Safari
Video & Recording
Maximum Performance
HDR 2592 × 1944 @30 + 800 × 600 @30
HDR 2048 × 1536 @30 + 800 × 600 @30
Rate Control
LBR, CBR, VBR
Resolution Range
Scalable from SVGA to 5 MP
SD Card Recording
microSD/microSDHC/microSDXC size up to 1 TB
Video Bandwidth
Configurable between 64 Kbps and 20 Mbps
Video Compression
Enhanced H.265 Main Profile + Enhanced H.264 Main/High/Baseline Profile + MJPEG
Video Motion Detection
Yes
Visible Camera
AGC
Auto
Bandwidth
Configurable between 64 kbps and 20 Mbps
DSS
1/4 (1/4) – 1/60 (50) NTSC (PAL)
Image Sensor
1/2.7”
Lens Type
2.1 mm, f/2.0, 139.1° HFOV × 101.65° VFOV @ 2592 × 1944
Mechanical IR Cut Filter
Yes
Noise Reduction
Yes
Sensitivity
B/W: 0.036; Color: 0.172
Sensor Resolution
5 MP
Signal to Noise Ratio
±45 dB
White Balance
Auto
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
