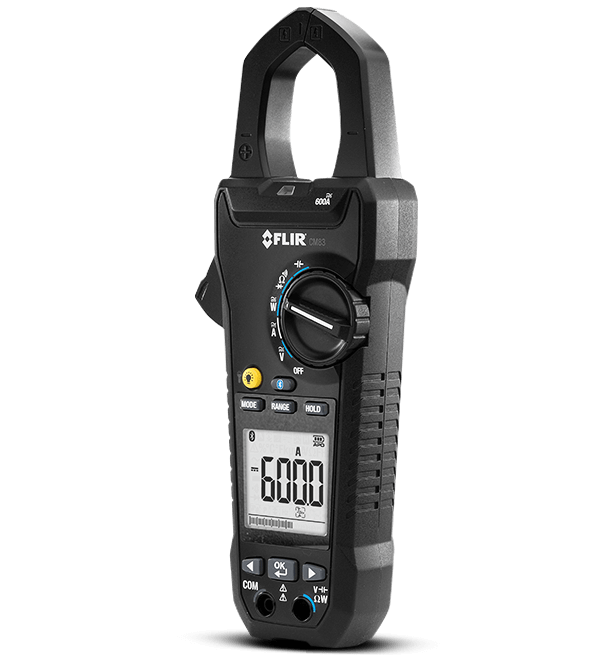

The FLIR CM83 is an industrial-grade power clamp meter engineered with advanced power analysis, harmonics measurements, and variable frequency drive (VFD) filtering functions to meet the needs of electrical troubleshooters. The meter features Bluetooth® technology to connect compatible mobile devices for remote viewing and sharing, and METERLiNK® technology to wirelessly embed electrical readings into radiometric infrared images on compatible FLIR thermal cameras.
- Products
- Test & Measurement
- Electrical Tools
- Clamp Meters
- FLIR CM83
Added to cart
-
Superior Accuracy
The True RMS clamp meters provide VFD Mode for superior accuracy while working on VFD-controlled equipment, and advanced power efficiency and harmonics measurements enable system-level performance analysis.
-
Reliable Performance
Features Inrush mode to capture AC Current spikes during start-up, and phase-rotation testing to ensure motor and power source alignment.
-
View Data Remotely, Share Instantly
View readings from your mobile device via Bluetooth; METERLiNK technology wirelessly embeds data into thermal images on compatible FLIR cameras.
Contact Sales
Want more information on this product?
Call +852 27928955 to speak with a knowledgeable specialist.
Specifications
- Jaw Opening
- 37 mm (1.45", 1500MCM)
- AC/DC Voltage
- Range 999.9 V Max / Basic Accuracy +/- 1% / 0.7%
Measurement & Analysis
- AC VFD Voltage
- Range 1000 V / Basic Accuracy +/- 1%
- AC/DC Current
- Range 599.9 A Max / Basic Accuracy +/- 2%
- AC/DC Voltage
- Range 999.9 V Max / Basic Accuracy +/- 1% / 0.7%
- Active Power
- Range 9.999 kW to 599.9 kW, (10 V, 5 A min) / Basic Accuracy +/- 3%
- Capacitance
- Range 3.999 mF Max / Basic Accuracy +/- 1.9%
- Category Rating
- CAT IV-600V, CAT III-1000V
- Continuity Threshold
- Range 30 Ω / Basic Accuracy +/- 1%
- Diode Test
- Range 0.4 to 0.8 V / Basic Accuracy +/- 0.1V
- Frequency
- Range 20.00 Hz to 9.999 kHz / Basic Accuracy +/- 0.5%
- Harmonics
- Range 1st-25th Order / Basic Accuracy +/- 5%
- Inrush Current
- Range 599.9 ACA Max (Integration Time 100 ms) / Basic Accuracy +/- 3%
- Resistance
- Range 99.99 kΩ Max / Basic Accuracy +/- 1%
- Total Harmonic Distortion
- Range 0.0 to 99.9% / Basic Accuracy +/- 3%
Communication & Data Storage
- Bluetooth range max
- 32 ft (10 m)
Power
- Battery type
- 6 x AAA
General
- Jaw Opening
- 37 mm (1.45", 1500MCM)
Environmental & Certifications
- Certifications
- CE, UL, FCC
- Warranty
- Limited Lifetime
