Handheld FLIR EST™ Thermal Screening Solutions

FLIR E86-EST

Model: E86-EST, 24° Lens
Go to Product Support

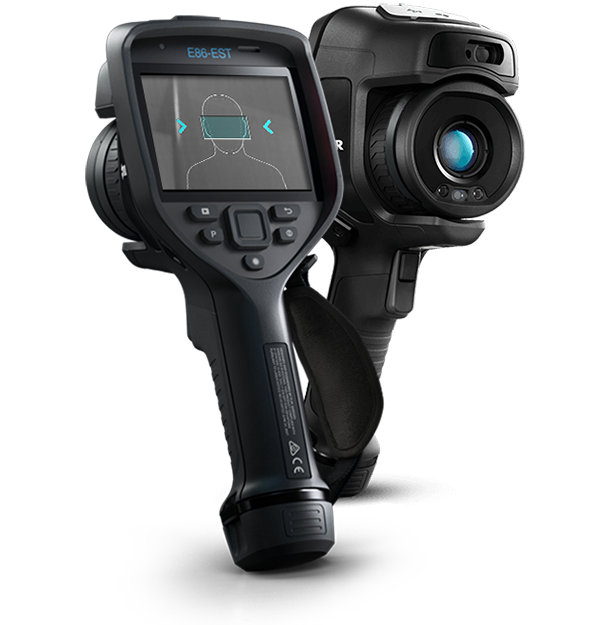

product image

The FLIR E86-EST handheld thermal camera is a non-contact screening tools that serve as a first line of defense against potential health risks. This FLIR EST™ thermal screening solution detects and visualizes heat to quickly identify individuals with an elevated skin temperature. With 464 × 348 thermal pixel resolution and bright touchscreen display, the E86-EST offers accurate, easy-to-interpret temperature measurement. The on-camera FLIR Screen-EST Mode offers visual positioning guides, automatic sampling to maintain an updated temperature average, and graphic pass/fail indicators for results, reducing the burden on screening station operators. Compatibility with FLIR Screen-EST Desktop software, an integrated tripod mount, and external power makes this camera a good fit for permanent installations.

Contact Sales
  • EASY SET-UP AND OPERATION

    Begin screening quickly with limited ramp-up time, simple video connectivity, and choice of >2.5-hour battery or external power.

  • FAST, ACCURATE SCREENING

    Optimal screening accuracy with automatic ambient drift compensation, visual pass/fail graphic indicators, and audible alarms.

  • MAINTAIN SAFETY AND PRIVACY

    On-camera FLIR Screen-EST Mode does not store images or personal information and allows for social distancing in screening setups.

Contact Sales

Want more information on this product?

Call +852 27928955 to speak with a knowledgeable specialist.

Specifications
IR Resolution
464 × 348
Field of view (FOV)
24° × 18°
Image Modes
Infrared, visual, MSX°, picture-in-picture
Display
4 in., 640 × 480 optically-bonded PCAP touchscreen, with 400 cd/m2 surface brightness
Storage Media
Removable SD card (8 GB)
Imaging & Optical
Camera f-number
1.3
Color
Black
Detector Type and Pitch
Uncooled microbolometer, 17 µm
Digital Data Streaming
Simultaneous thermal and visible, USB Type-C
Digital Zoom
1-4x continuous
Field of view (FOV)
24° × 18°
FLIR Screen-EST Mode
Yes
Focal Length
17 mm (0.67 in)
Focus
Continuous laser distance meter (LDM), one-shot LDM, one-shot contrast, manual
Frame Rate
30 Hz
Image Modes
Infrared, visual, MSX°, picture-in-picture
IR Resolution
464 × 348
Lens
24°
Lens Identification
Automatic
Minimum Focus Distance
0.15 m (0.49 ft)
MSX
Yes
Palette
Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Spatial resolution (IFOV)
0.90 mrad/pixel
Spectral Range
7.5–14 µm
Thermal Sensitivity_NETD [typical]
<40 mK @ 30°C (86°F)
UltraMax
Yes
Viewfinder
No
Measurement & Analysis
Accuracy [Drift] in Screen-EST Mode
±0.3°C (±0.5°F)
Automatic hot & cold detection
Auto-maximum/minimum markers within area
Emissivity Correction
Yes: variable from 0.01 to 1.0 or selected from materials list
Languages
21
Measurement Corrections
Yes
Object Temperature Range
15°C to 45°C (59°F to 113°F)
Reference Temperature
Yes
Sampling Average in Screen-EST Mode
Recommended range: 30 to 45°C (86 to 113°F) in stable room temperature
User Interface
Display
4 in., 640 × 480 optically-bonded PCAP touchscreen, with 400 cd/m2 surface brightness
Display Technology
IPS
Power
Battery type
Rechargeable Li ion battery, >2.5 hrs (typical use)
Battery voltage
3.6 V
Battery weight
140 g (4.9 oz)
Charging Temperature
0°C to 45°C (32°F to 113°F)
External Power Operation
USB 2.0 A to USB Type-C with Power supply
Power Management
No
Environmental & Certifications
Drop
Designed for 2 m (6.6 ft)
Operating Temperature Range
-15°C to 50°C (5°F to 122°F)
Radio Spectrum
ETSI EN 300 328/FCC Part 15.249/RSS-247 Issue 2
Safety
EN/UL/CSA/PSE 60950-1
Storage Temperature Range
-40°C to 70°C (-40°F to 158°F)
Tripod Mounting
UNC ¼"-20
Warranty
http://www.flir.com/warranty/
General
Housing material
PCABS with TPE, magnesium
Packaging
Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)
Size (L x W x H)
278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in)
Weight
1 kg (2.2 lbs)
