New
12 MP Camera with Edge AI Video Analytics

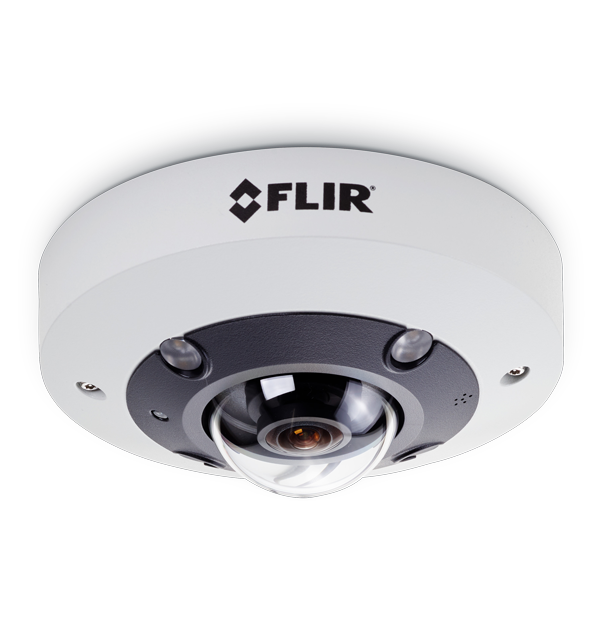

FLIR Quasar™ Hemispheric Mini-Dome AI

Go to Product Support

The FLIR Quasar 12 MP hemispheric mini dome AI camera uses onboard video analytics (VA) powered by advanced artificial intelligence (AI) to provide situational awareness in the most demanding environments where evidential and forensic video is required. With an indoor/outdoor vandal-resistant housing, two-way audio, IR LED illumination, and an I/O interface, the fully featured Quasar 12 MP hemispheric mini dome AI addresses a wide range of applications such as travel/transport, commercial buildings, financial institutions, smart cities, entertainment, property management, government buildings (non-defense), educational facilities, healthcare, and retail.

  • Advanced Artificial Intelligence Video Analytics

    • Classified Object Type: Person/Vehicle
    • Analytics Events Based on AI Engine & Events: Intrusion-Region/Tripwire, Object Counting, Loitering, Stopped Vehicle
    • Analytics Events Based on VMD Engine & Events: Abandoned Object, Object Removal, Wrong Direction-Corridor, Camera Sabotage
    • Business Intelligence: People Counting on Latitude 9.2.1 and Above

  • Advanced situational awareness

    The camera supports user-customized views with digital presets independent of complete 360° view recording, providing full-coverage, panoramic video surveillance.

  • Ease of Installation

    FLIR accessory/mounting ecosystem, and the ability to operate more cameras on the same server all contribute to a lower total cost of ownership. It offers seamless integration with a wide range of video management systems, including United VMS, which brings indoor and outdoor surveillance and perimeter intrusion detection cameras together as part of an end-to-end security solution.

Specifications
General
Automatic Electronic Shutter [AES]
Auto shutter + max gain off
Day/Night Mode
Automatically removable IR-cut filter
Digital Slow Shutter [DSS]
1/60, 1/30, 1/15, 1/8, 1/4, 1/2, 1/1
Dimensions
130 mm × 57.8 mm (5.11 in × 2.27 in)
Firmware Upgrade
Flash memory for upgrade of camera firmware over the network
Input Voltage
12 VDC, 24 VAC, PoE+ IEEE 802.3at
Power Consumption
PoE IEEE802.3af: 9.12 W DC 12 V: 9.9 W
Weight
565 g (1.25 lb)
Compliance & Certifications
MTBF [hrs]
526,279 (30°C); 149,537 (60°C)
ONVIF Compliance
FCC Part 15 (Subpart B, class A, ICES-003), CE Marked, RoHS, RCM, LVD, IEC 60950-22, IEC 62471, IK10, IP66, WEEE, Bump, Vibration, ISTA-3A, CB-62368
Cyber Security
AI Video Analytics
Yes
Security
Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, Service Firewall
Environmental
Environmental
-10°C to 55°C (14°F to 131°F) without heater
-30°C to 55°C (-22°F to 131°F) with heater
Humidity
10% to 90%, No condensation
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Measurement & Analysis
Automatic Gain Control
Shutter priority
System Integration
Alarm In
Alarm in x1
Alarm IO
Alarm in x1, Alarm out x1, Terminal Block Power 2 Pin Terminal Block
Ethernet (IEEE 8023-8023u)
10/100,1000 IEEE 802.3, auto sensing 1 × RJ45
Network Protocol
IPV4, IPV6, HTTP, HTTPS, ,UPnP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X
Remote Configuration
Via web browser or supported video management software
Supported Web Browser
Chrome, Edge, Internet Explorer, Firefox, Opera
Video & Recording
Maximum Performance
Up to 4 individually configurable streams in H.265/H.264/MJPEG
Rate Control
CBR, CVBR, VBR
SD Card Recording
MicroSDXC up to 2 TB, SD Bus Mode UHS I (not included)
Video Bandwidth
Configurable between 64 Kbps and 20480 Kbps
Video Compression
Up to 4 individually configurable streams in H.265/H.264/MJPEG
Visible Camera
Backlight Compensation
On/Off
Lens Type
Fixed focal length: 1.65 mm
Field of view: 360°
Minimum Illumination
5 m, 940 nm
Noise Reduction
2DNR, 3DNR, color NR
Sensitivity
Color 0.1 lux B/W 0.01 lux
Signal to Noise Ratio
≥50 dB
White Balance
Auto/One Push/ATW/Manual
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
