30:1 Spot IR Thermometer with Type K Thermocouple

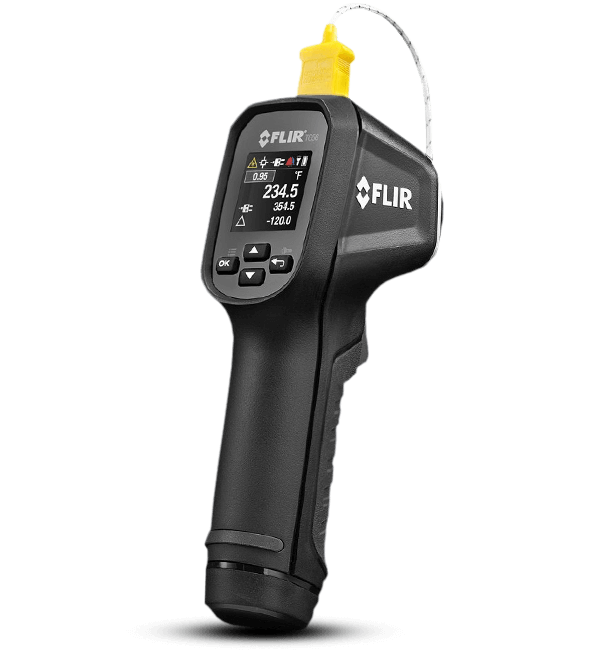

FLIR TG56

Go to Product Support
product image

The FLIR TG56 provides non-contact surface temperature readings so you can quickly and easily take measurements in places that are out of reach. Providing a distance-to-spot ratio of 30:1, the TG56 can measure smaller targets from a safer distance. The thermometer gives you control to view your current reading and last two temperature readings simultaneously, and the color screen makes it easy to navigate and select settings.

Sales Contact Contact Sales
  • Work Safely

    Provides non-contact temperature measurement and a 30:1 spot ratio to measure smaller targets from a safer distance.

  • Simple to Use

    The TG56's graphical menu structure and color display provide easy access to settings and clear navigation.

  • Portable and Rugged Design

    Built to withstand a 3-meter drop, the industrial and compact design makes it easy to carry wherever you need it.

Contact Sales

Want more information on this product?

Call +852 27928955 to speak with a knowledgeable specialist.

Specifications
Distance to Spot Ratio (D:S)
30:1
Basic Accuracy
±1°C/1.8°F or 1% of Reading
Emissivity
Adjustable with 4 presets and custom option
Imaging & Optical
Display (w x h)
1.45" TFT LCD (128 x 128 pixels)
Laser Orientation
Single laser pointer to center of measurement spot, Class 1
Range
-30°C to 650°C (-22°F to 1202°F)
Resolution
0.1°C / 0.1°F
Spectral Response
5 to 14 microns
Measurement & Analysis
AVG (6k pts running average)
Yes
Basic Accuracy
±1°C/1.8°F or 1% of Reading
Differential (MAX/MIN)
Yes
Distance to Spot Ratio (D:S)
30:1
Included Type K Thermocouple Probe Range
-30°C to 300°C (-22°F to 572°F)
Input Basic Accuracy
±2°C/3.6°F or 1% of Reading
Input Range
-30°C to 650°C (-22°F to 1202°F)
Input Type
K
Max/Min
Yes
Measurement Resolution
0.1°C / 0.1°F
Response
≤150 Milliseconds
TC/IR Differential Mode
Yes
Power
Auto Power Off
Yes with Pre-set adjustment level and Disable option
Continuous Run Time
8hrs Maximum
Power Source
3 x AAA alkaline
General
Alarm
High / Low
Alarm Alert
Color (Red / Blue) indication
Includes
Wrist Strap Lanyard, Quick Start Guide, User Manual (CD), 3 x AAA Batteries, (TG56 adds General Purpose Type K Thermocouple)
Environmental & Certifications
Certifications
CE / FDA Laser
Drop test
Designed for 3m
Emissivity
Adjustable with 4 presets and custom option
IP Rating
-
Warranty
Limited 3-Year
Accessories
Related Products
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
