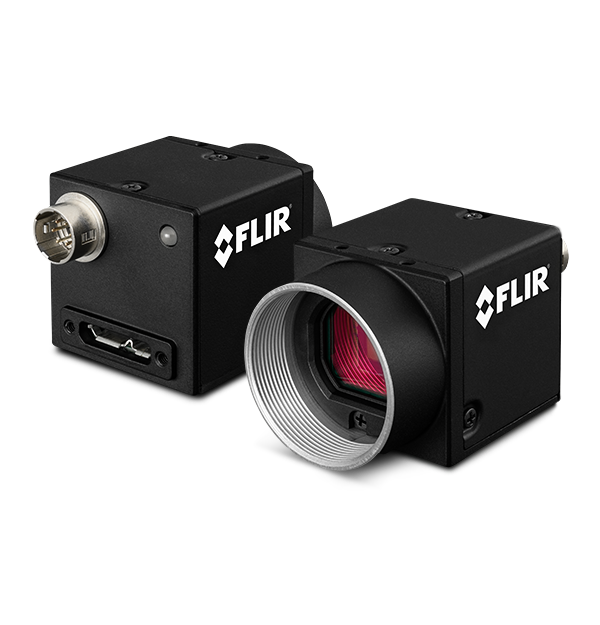

Blackfly USB3

Features

Exposure Range

0.019 ms to 3.9 seconds

Flash Memory

1 MB non-volatile memory

Frame Rate

41

Gain Range

0 dB to 29.9 dB

Image Buffer

16 MB

Image Processing

Gamma, lookup table, hue, saturation, and sharpness

Partial Image Modes

Pixel binning, decimation, ROI

Trigger Modes

Standard, bulb, overlapped, multi-shot

User Sets

2 user configuration sets for custom camera settings

Performance

Absolute Sensitivity Threshold (y)

20.26 (Mode 0) / 10.42 (Mode 7)

Dynamic Range dB

67.33 (Mode 0) / 73.09 (Mode 7)

Quantum Efficiency Blue

65 (Mode 0) / 66 (Mode 7) (% at 470 nm)

Quantum Efficiency Green

74 (Mode 0) / 74 (Mode 7) (% at 525 nm)

Quantum Efficiency Red

51 (Mode 0) / 52 (Mode 7) (% at 640 nm)

Saturation Capacity (e-)

33158 (Mode 0) / 33368 (Mode 7)

Temporal Dark Noise (e-)

13.77 (Mode 0) / 6.89 (Mode 7)

Physical

ADC

10-bit, 12-bit

Auxiliary Output

3.3 V, 120 mA maximum

Chroma

Color

Dimensions [W x H x L]

29 mm × 29 mm ×30 mm

Interface

USB 3.1 Gen 1

Lens Mount

C-mount

Mass

36 grams

Megapixels

2.3

Operating Humidity

20 to 80% (no condensation)

Operating Temperature

0° to 45°C

Opto-isolated I/O Ports

1 input, 1 output

Part Number

BFLY-U3-23S6C-C

Pixel Size

5.86

Power Requirements

5-24 V via GPIO or 5 V via USB3

Readout Method

Global shutter

Resolution

1920 × 1200

Sensor Format

1/1.2"

Sensor Name

Sony IMX249

Sensor Type

CMOS

Storage Humidity

20 to 95% (no condensation)

Storage Temperature

-30° to 60°C

Recommended System Configuration

CPU

3.1 GHz or equivalent CPU

Hard Drive

200 MB hard drive space

Operating System

Windows or Linux (32-bit or 64-bit)

Port

USB 3 Port

Required Accessories

Lens, Cable, Host Adapter (USB 3.1 Gen 1), Tripod Mount Adapter (ACC-01-0003)

Compliance & Certifications

Compliance

CE, FCC, KCC, RoHS. The ECCN for this product is: EAR099.

Machine Vision Standard

USB3 Vision v1.0

Warranty

3 years
