LWIR Micro Thermal Camera Module

Lepton®

Model: Lepton 2.5, 80x60, 50°, radiometric with shutter Go to Product Support

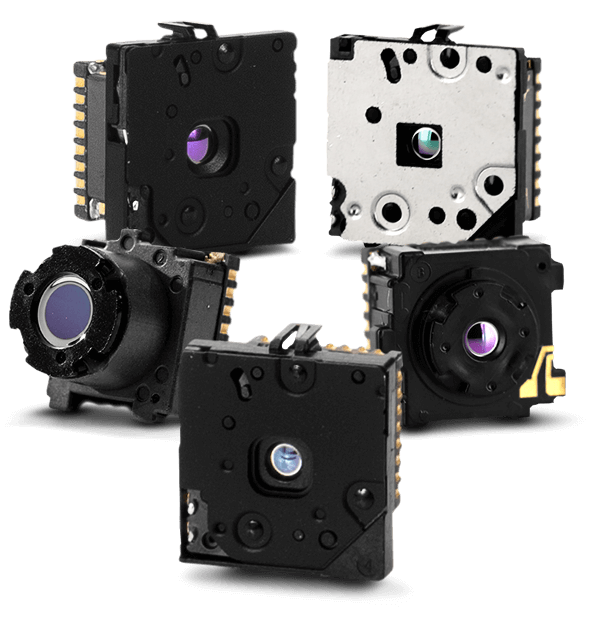

The FLIR Lepton® is a radiometric-capable LWIR OEM camera solution that is smaller than a dime, fits inside a smartphone, and is one tenth the cost of traditional IR cameras. Using focal plane arrays of either 160x120 or 80x60 active pixels, Lepton easily integrates into native mobile-devices and other electronics as an IR sensor or thermal imager. The radiometric Lepton captures accurate, calibrated, and noncontact temperature data in every pixel of each image.

Develop Products Beyond Your Imagination

  • ENHANCED RADIOMETRIC THERMAL PERFORMANCE

    Radiometric sensor with greater resolution and sensitivity than common thermopile arrays.

  • AFFORDABLE MICRO THERMAL CAMERA WITH UNBEATABLE SWaP

    Size, power, and lens options enable mobile devices, unattended sensors, and small electronics.

  • PROFESSIONAL GRADE AND BUILT FOR INTEGRATORS

    Develop with the industry’s leading thermal camera manufacturer to reduce risk, cost, and time to market.

Integration Made Easy

Integration Made Easy

Our comprehensive online support tools cover everything you need to start integrating the Lepton into handheld mobile, IoT, unmanned, or other imagined devices using Windows, Linux, Raspberry Pi, and Beaglebone platforms.

Specifications
Thermal Imaging Detector
Uncooled VOx microbolometer
Pixel Size
17 µm
Frame Rate Options
8.6 Hz (commercial application exportable)
Thermal Spectral Range
Longwave infrared, 8 µm to 14 µm
Scene Temperature Range
High Gain Mode: -10 °C to 140 °C (14 °F to 284 °F)
Low Gain Mode: -10 °C to +450 °C (14 °F to 842 °F)
Temperature Accuracy
High gain: Greater of +/- 5°C or 5% (typical) Low gain: Greater of +/- 10°C or 10% (typical)
Performance
Scene Temperature Range
High Gain Mode: -10 °C to 140 °C (14 °F to 284 °F)
Low Gain Mode: -10 °C to +450 °C (14 °F to 842 °F)
Thermal Spectral Range
Longwave infrared, 8 µm to 14 µm
Radiometry
Temperature Accuracy
High gain: Greater of +/- 5°C or 5% (typical) Low gain: Greater of +/- 10°C or 10% (typical)
Imaging & Optical
Array format
80 × 60, progressive scan
FOV - Diagonal
63.5°
FOV - Horizontal
50° (nominal)
Frame Rate Options
8.6 Hz (commercial application exportable)
Image Optimization
Factory configured and fully automated
Non-Uniformity Correction (NUC)
Integrated Shutter
Pixel Size
17 µm
Thermal Imaging Detector
Uncooled VOx microbolometer
Thermal Sensitivity
<50 mK (0.050° C)
Video Data Interface
Video over SPI
Connections & Communications
Output Format
User-selectable 14-bit, 8-bit (AGC applied), or 24-bit RGB (AGC and colorization applied)
Electrical
Control Port
CCI (I2C-like), CMOS IO Voltage Levels
Input Clock
25-MHz nominal, CMOS IO Voltage Levels
Input Voltage
2.8 V, 1.2 V, 2.5 V to 3.1 V IO
Power Dissipation
150 mW (operating), 650 mW (during shutter event), 4 mW (standby)
Mechanical
Mechanical Interface
32–pin socket interface to standard Molex® socket
Package Dimensions - Socket Version (w x l x h)
11.8 x 12.7 x 7.2 mm
Weight
0.9 grams (without socket)
Environmental & Approvals
Non-Operating Temperature Range
-40 °C to +80 °C (14 °F to 176 °F)
Optimum Temperature Range
-10°C to +80°C (-40 °F to 176 °F)
Shock
1500 G @ 0.4 ms
Solar protection
Integrated
Temperature Compensation
Automatic. Output image independent of camera temperature.
Related Content
Accessories

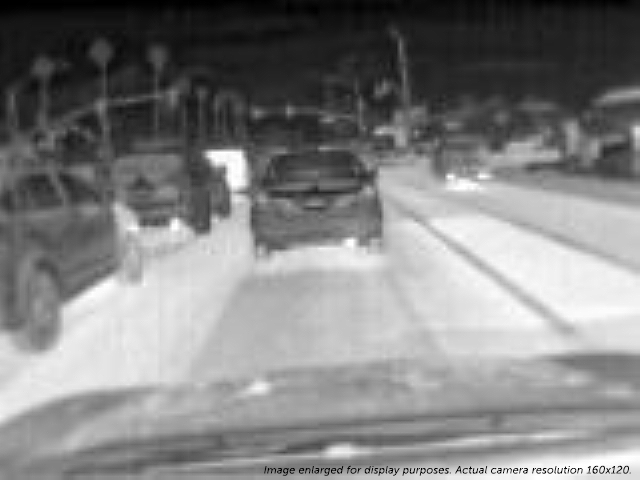

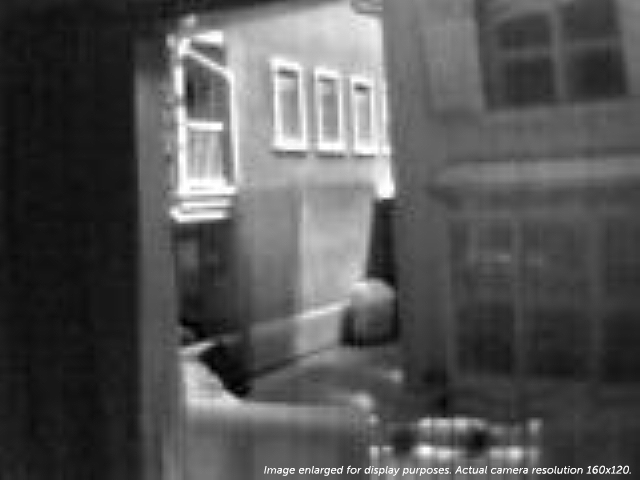

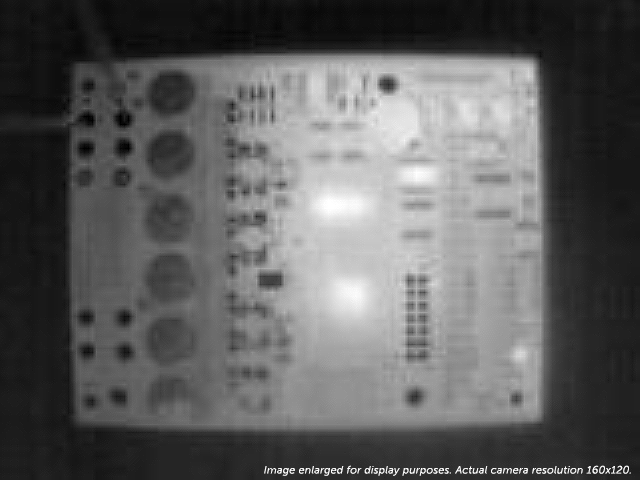

Media gallery

Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
