Moisture Meter Pro

FLIR MR60

Go to Product Support

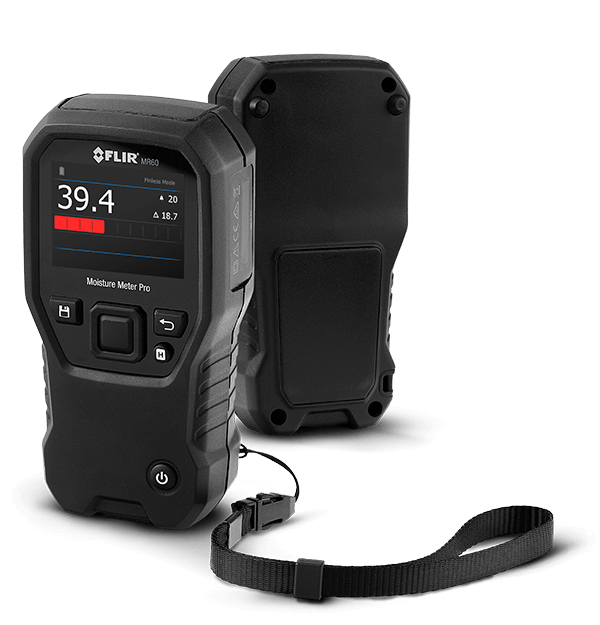

product image

The FLIR MR60 Moisture Meter Pro is an easy-to-use pin and pinless moisture meter with advanced functionality. An integrated pinless sensor and an external pin probe provide the flexibility to take destructive or non-destructive measurements. Select one of the eleven material groups for pin moisture, or set a reference point for pinless moisture scanning. Then conveniently save screenshots of your measurements as a CSV file with the date, time, and settings.

Contact Sales
  • Destructive or Non-Destructive Measurements

    Integrated pinless moisture sensor and an external pin probe included for resistive moisture content measurements in a variety of substrates.

  • Clear, Accurate Readings

    Choose from 11 material group selections for pin-based readings, then save up to 10,000 screenshots to transfer and view via PC/USB.

  • Simple to Use and Create Reports

    Features an easy-to-read display and intuitive user interface. Save files and generate reports with free FLIR Tools software.

Contact Sales

Want more information on this product?

Call +852 27928955 to speak with a knowledgeable specialist.

Specifications
Includes
MR60, MR02 pin probe, Quick Start Guide, International Charger, Warranty Card, Brochure Card
Imaging & Optical
Display type (W x H)
QVGA (320 x 240) pixel 2.3" 64K color TFT graphical display
Measurement & Analysis
Measurement Resolution
0.1
Pin Moisture via Ext Probe Range
Construction material groups: 0- 20% (reference only) / 10: brick, cement screed, concrete / 11: cement mortar, anhydrite screed, lime mortar, plaster Wood groups 1-9: 1-5: oak, most maples, pine, hickory, teak, sycamore 6-9: building materials: plywood, drywall, OCD 7% - 30% 30 % - 100% ±1.5% (reference only) Construction material groups: 10: brick, cement screed, concrete 11: cement mortar, anhydrite screed, lime mortar, plaster 0- 20% (reference only)
Pinless Moisture Depth
1.9cm (0.75") maximum
Pinless Moisture Range
0–100 relative measurement
Response Time Pin Mode
750 ms
Response Time Pinless
100 ms
Sample Rate
10Hz (approx., both modes)
Communication & Data Storage
Internal Memory
4GB
Saved Image File format
Bitmap (.bmp) with measurement values overlaid
Stored Data File Format
Comma Separated Values (.csv) format with date/time stamp. Reading value, reading type included.
Stored Image Capacity
9999 images
Power
Auto Power Off
Programmable: OFF, 1, 5, or 20 minutes
Battery
3.7 V, 3000mAh Li-ion rechargeable via micro USB
Continuous Run Time
18 hours max
Power Adapter
100–240 V input/ 5 V 1A output
Power Requirements
Integrated rechargeable battery
Typical Usage
4 work weeks
General
Includes
MR60, MR02 pin probe, Quick Start Guide, International Charger, Warranty Card, Brochure Card
Packaging Size
51.2 x 25.8 x 64 cm†(20.2 x 10.2 x 25.2 in.)
Environmental & Certifications
Agency Approvals
FCC Class B, CE, UL
Certification Standards
EN61326 (EMC), EN61010 (Battery + Charger)
IP Rating/Drop Test
IP54/3m (9.8 ft)
Operating Humidity
≤ 90%, 0~30°C (32~86°F), ≤ 75%, 30~40°C (86~104°F), ≤ 45%, 40~50°C (104~122°F)
Operating Temperature
0~50 °C (32~122 °F)
Storage Humidity
90% RH
Storage Temperature
-10~60°C (14~140°F)
Warranty
2 years
