HD Visible and Thermal Pan/Tilt

PT-Series HD

Model: PT-602CZ-R HD, Cooled, Continous Zoom 2° - 28° FOV, NTSC Go to Product Support

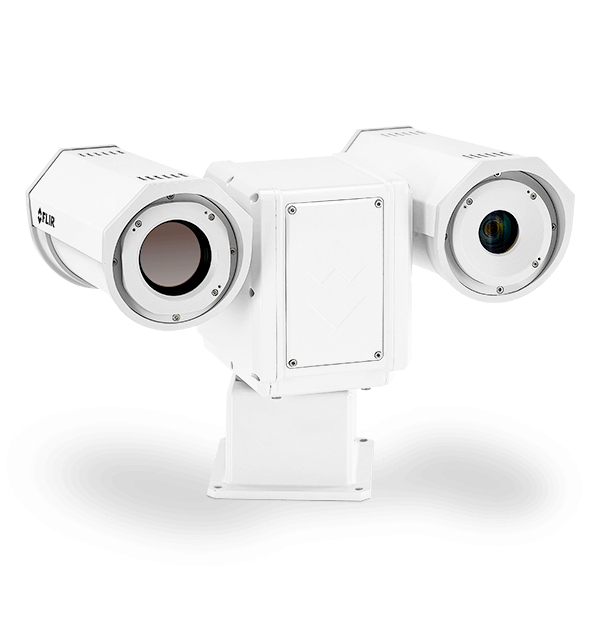

product image

The FLIR PT-Series HD is our most advanced dual-sensor security system, combining a cooled or uncooled 640×480 resolution thermal sensor, a 1080p HD visible-light imaging sensor, and a high speed, precision pan/tilt system. The PT-Series HD integrates easily with FLIR United VMS 8.0, as well as other major third party video management systems, making it an extremely versatile solution for critical infrastructure protection in total darkness, bright sun, and adverse conditions.

Sales Contact Contact Sales
  • Superior Image Quality

    The PT-Series HD's thermal camera offers up to a 14x continuous zoom, while the low light HD camera has a 30x optical zoom.

  • Rugged Housing

    The weather-resistant housing includes deicing and de-fogging capabilities, plus a changeable thermal payload cassette that significantly reduces maintenance time.

  • Designed for System Integration

    When controlled using FLIR United VMS, enhanced capabilities are enabled, including automated PTZ tracking and fixed camera-target hand off.

Follow intruders between fixed and pan/tilt FLIR cameras

Follow intruders between fixed and pan/tilt FLIR cameras

FLIR PT-Series HD thermal cameras detect intrusions at great distances. When a PT-Series HD is deployed along with multiple fixed FLIR cameras, FLIR TRK analytics encoders, and FLIR United VMS, a target moving out of the field of view of a fixed camera can automatically be "handed-off" and tracked by the PT-Series HD.

Contact Sales

Want more information on this product?

Call +65 316 35295 / C7401 800 7231438 C735(Toll Free In Country) to speak with a knowledgeable specialist.

Specifications
General
Detector Type
Cooled Focal Plane array
Dimensions (L x W x H)
13.7", 18.4", 12.8" (348mm, 467mm, 326 mm)
Input Voltage
24 VDC (21-30 VDC) 24 VAC (21-30 VAC)
Power Consumption
24 VAC: 85 VA (max w/o heaters) 215 VA (max w/heaters) 24 VDC: 65 W (max w/o heaters) 195 W (max w/heaters)
Thermal Array Format
640 × 512
Thermal Effective Resolution
327,680
Thermal E-Zoom
Continuously Adjustable
Thermal Focus Range
Athermalized, Focus-Free
Thermal Pixel Pitch
17 µm
Thermal Spectral Range
3 µm to 5 µm
Weight
40.8 lbs. (18.5 kg)
Zoom
30X optical zoom with autofocus and 12X digital zoom
Environmental
De-Icing/Anti-Icing
MIL-STD-810F, Method 521.1; - De-Icing
Humidity
0-95% relative
IP Rating (dust & water ingress)
IP66
Operating Temperature Range
-32°C to 55°C (-26° F to 131°F) cold start
Shock
MIL-STD-810F "Transportation"
Storage Temperature Range
-40°C to 71°C (-40°F to 160°F)
Vibration
IEC 60068-2-27
Measurement & Analysis
Programmable Presets
256.0
Other
Type of Sensor
Full HD 1080p 1/2.8-type Exmor R CMOS
PTZ
Pan Angle/Speed
Continuous 360°; 0.1° to 60°/sec
Tilt Angle - Speed
+90° to -90°; 0.1° to 30°/sec
System Integration
Ethernet
Yes
External Analytics Compatible
Yes
Network APIs
FLIR SDK FLIR CGI ONVIF Profile S
Serial Control Interfaces
RS-232/-422; Pelco D, Bosch
Supported Protocols
IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP
Thermal Camera
Focal Length - Thermal
19-275 mm, F# 5.5 with High Durability coating
Thermal Frame Rate
NTSC: 30 Hz PAL: 25 Hz
Thermal Image Settings
Auto AGC, Dynamic Detail Enhancement (DDE), Sensitivity
Video & Recording
Composite Video NTSC or PAL
Yes: Hybrid IP & Analog
Video Compression
Thermal: Two independent channels of H.264 & M-JPEG Visible: Two independent channels of H.264 & M-JPEG
Video Image Uniformity Optimization
Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers
Video Streaming Resolution
Thermal: QVGA to VGA Visible: VGA to HD
Video Thermal AGC Modes
Linear AGC, Histogram AGC, Dynamic Detail Enhancement (DDE), Sensitivity
Video Thermal AGC Region of Interest [ROI]
Default, Presets and User definable to insure optimal image quality on subjects of interest
Visible Camera
Array format
640 × 480
Field of view (FOV)
14x continuous optical zoom 28° x 21° W FOV 2° x 1.5° N FOV
f-number
F1.6 to F4.7
Focal Length
4.3 mm (wide) to 129.0 mm (tele)
Lens Field of View
63.7° (wide end) to 2.3° (tele end)
Low Light Sensitivity
Color: 0.01 lx (F1.6, AGC on, 1/30s)
Noise Reduction
Yes (6 steps)
Sensitivity
<35mK @ 25c F# 1.0
Sensor Illumination
Back Light Compensation
WDR
120db
