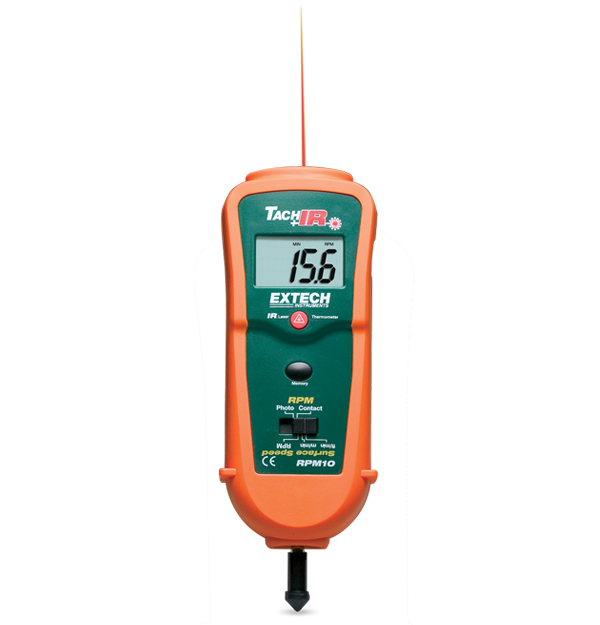

Photo/Contact Tachometer with built-in InfraRed Thermometer

Extech RPM10

Model: RPM10 Go to Product Support
product image

The RPM10 is a combination tachometer which provides both contact and non-contact RPM measurements, making this device useful in virtually all applications. The RPM10 also features a built-in IR thermometer with laser pointer for measuring surface temperature from -4 to 600 degrees F (-20 to 315 degrees C), making it ideal for checking the operating temperature of motors, bearings and machinery. Complete with wheels for linear surface speed (0.2 to 6560 ft. /minute; 0.05 to 1999.9 m/minute) or RPM measurements, 4 AA batteries, 23 in. (0.6 m) reflective tape, carrying case, and user manual.

General Specifications
Rotation Speed (Contact)
0.5 to 20,000rpm
Rotation Speed (Contact) Basic Accuracy
±(0.05% of reading + 1 digit)
Rotation Speed (Contact) Max Resolution
Rotation Speed (Strobe)
10 to 99,999rpm
Rotation Speed (Strobe) Basic Accuracy
±(0.05% of reading + 1 digit)
Rotation Speed (Strobe) Max Resolution
Surface Speed (Contact)
0.2 to 6560ft/min, 0.05 to 1999.9m/min
Surface Speed (Contact) Basic Accuracy
±(0.05% of reading + 1 digit)
Temperature (IR) Basic Accuracy
-4 to 600 °F (-20 to 315 °C)
Additional Details
8.5 × 2.6 × 1.5" (216 × 66 × 38mm)
4 × AA (1.5V) batteries
2 years
10.6oz (300g)
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
