High-Performance Handheld Infrared Camera

FLIR T865

Model: FLIR T865 + DFOV (14° + 24°) Go to Product Support
product image

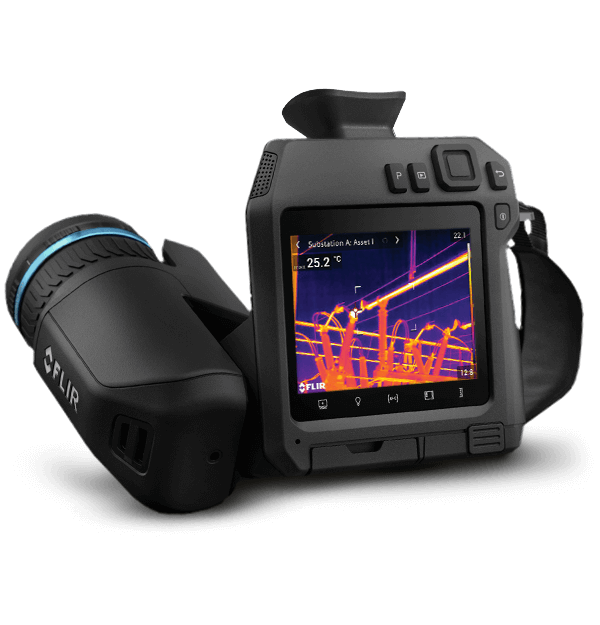

The FLIR T865 thermal imaging camera is a non-contact inspection tool with 180° rotating optical block that allows users to safely and comfortably assess the condition of critical electrical and mechanical equipment in utility and manufacturing applications. With advanced features including unmatched temperature measurements down to -40°C, accuracy as good as 1°C/1%, 1-Touch Level/Span contrast enhancement, and laser–assisted autofocus, you'll get highly accurate temperature measurements every time. Pair the T865 with a 6 FOV IR lens to perform inspections on small targets from long distances. The on-board Inspection Route system helps you record temperature data and imagery in a logical sequence for faster troubleshooting and repair. The T865 also features FLIR Ignite for automatic uploading of images directly from the camera to the cloud for easy, secure storage and sharing. Adding a FLIR T865 camera to a condition monitoring/predictive maintenance program can help reduce maintenance costs, improve system efficiency and reliability, and prevent downtime due to outages.

Sales Contact Contact Sales

  • Improve Workflow Efficiencies

    Develop inspection routes in FLIR Thermal Studio Pro and upload to a T865 using Route Creator to quickly and easily collect and manage critical data.

  • Work Safely and Comfortably

    Assess the state of equipment from a safe distance, at any angle, or in any lighting condition using the 180° rotating optical block, integrated eyepiece viewfinder, and 4–inch color IPS display

  • Make Critical Decisions Quickly

    Increase in–field efficiency with exceptional measurement accuracy, enhanced thermal imagery, and workflow optimizations to save time and share data faster.

FLIR Ignite™ for T-Series

FLIR Ignite™ for T-Series

Improve your team’s efficiency and capabilities with the FLIR Ignite cloud solution. Directly upload, organize, and share images from your Wi-Fi connected FLIR T5xx or T8xx camera. Keep your data safe in one place and easily accessible from any device.

Don't Have Ignite?

FLIR T8xx-Series cameras purchased prior to December 2021 may not include the FLIR Ignite cloud connection. You can add it to your camera for free with a firmware upgrade available here.







thermal-studio-pro-Exseries.pngProfessional Reports that Help Your Customer and Your Business

The right image analysis and reporting software can greatly improve your business by making it easier for you and your customers to understand the problem and feel confident that you fixed it.

The advanced analysis and decision-making support offered in FLIR Thermal Studio Pro includes a rich set of measurement tools, batch processing, the ability to pre-plan inspection routes, and customized report templates.




maintenance page_repair.jpg

flir care logo.png     flir protect logo.png

Never Worry About Your Camera Performance Again

Keep your camera going strong with FLIR CARE and FLIR PROTECT. FLIR CARE provides world-class calibration with performance verification and traceable calibration adjustment services that ensure your thermal data is always accurate. FLIR PROTECT extended warranty and service packages provide a full three years of coverage beyond the respective camera’s factory warranty. FLIR PROTECT customers can also receive a bundled calibration service, discounts on additional services, and options for fast-delivered loaner cameras.

Learn More

ITC_Logo_Primary.pngBecome a Thermal Studio Expert

Learn to edit images, analyze them, and produce custom reports using FLIR Thermal Studio Suite software with online training from the Infrared Training Center. This virtual class covers everything you need to know, including:

  • How to adjust image parameters and optimize thermal contrast
  • How to create batch functions for image processing
  • How to design a new report template

Thermal Studio Training



Contact Sales

Want more information on this product?

Call +852 27928955 to speak with a knowledgeable specialist.

Specifications
IR Resolution
640 × 480 pixels
Thermal Sensitivity/NETD
<40 mK @ 30°C (24° lens)
Accuracy
±1°C (±1.8°F): 5 to 100°C (41 to 212°F), ±1%: 100 to 120°C (212 to 248°F), ±2°C (±3.6°F): -40 to 100°C (-40 to 212°F), ±2%: 100 to 650°C (212 to 1202°F), 300 to 2000°C (572 to 3632°F)
Digital Camera
5 MP, with built-in LED photo/video lamp
Display
4", 640 × 480 pixel touchscreen LCD with auto-rotation
Storage Media
Removable SD card
Imaging & Optical
Color Palettes
Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Detector Type and Pitch
Uncooled microbolometer, 12 µm
Digital Camera
5 MP, with built-in LED photo/video lamp
Digital Zoom
1-8x continuous
f-number
1.3/1.3
Focal Length
29 mm (1.41 in) / 17 mm (.67 in)
Focus
Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual
Image Frequency
30 Hz
IR Resolution
640 × 480 pixels
Lens
DFOV (24°, 14°)
Lens Identification
Automatic
Minimum Focus Distance
.18 m (.59 ft), 24° / 1.0 m (3.28 ft), 14°
Minimum Focus Distance with MSX
.5 m (1.64 ft) / 1.0 m (3.28 ft)
Non-radiometric IR video streaming
H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture-in-Picture
Resizable and movable
Radiometric IR video recording
Real-time radiometric recording (.csq)
Radiometric IR video streaming
Yes, over UVC
Spectral Range
7.5 - 14.0 µm
Thermal Sensitivity/NETD
<40 mK @ 30°C (24° lens)
UltraMax
Quadruples pixel count; activated in menu and processed in FLIR reporting software.
Viewfinder
Yes
Measurement & Analysis
Accuracy
±1°C (±1.8°F): 5 to 100°C (41 to 212°F), ±1%: 100 to 120°C (212 to 248°F), ±2°C (±3.6°F): -40 to 100°C (-40 to 212°F), ±2%: 100 to 650°C (212 to 1202°F), 300 to 2000°C (572 to 3632°F)
Measurement Presets
No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
Object Temperature Range
-40°C to 120°C (-40°F to 248°F); 0°C to 650°C (32°F to 1202°F) 300°C to 2000°C (572°F to 3632°F)
Spot Meter
10 ea. in live mode
User Interface
Display
4", 640 × 480 pixel touchscreen LCD with auto-rotation
Text
Predefined list or touchscreen keyboard
Voice
60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
Power
Battery operating time
Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
Battery type
Li-ion battery, charged in camera or on separate charger
Environmental & Certifications
Operating Temperature Range
-15°C to 50°C (5°F to 122°F)
Safety
EN/UL/CSA/PSE 60950-1
Storage Temperature Range
-40°C to 70°C (-40°F to 158°F)
General
Compatible with FLIR software
FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK
Laser Pointer
Yes
Packaging
Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)
